NDP-5 Série

Yamada® NDP-5 Série de bombas de diafragma

Yamada Trial Pump Program

1/4" Porto Fluido

As bombas Yamaha® NDP-5 da série AODD fornecem uma vazão máxima de 3,4 galões por minuto. As bombas estão disponíveis em alumínio, aço inoxidável (316), Kynar® (PVDF), acetal moído e construção em polipropileno.

O que separa a Yamada do resto da embalagem é a nossa tecnologia de válvula de ar. A Yamada usa uma válvula de ar principal totalmente não lubrificada e mecanismos pilotos independentes para controlar a lógica do ar.

À medida que o ar comprimido entra na bomba, ele é direcionado através da válvula de ar principal para um lado ou para o outro, dependendo da posição inicial da bobina c. Quando o ar entra na câmara, força o diafragma para fora. Este impulso externo força o líquido para fora da válvula de esfera de descarga e carrega a válvula de esfera de entrada oposta. À medida que o diafragma se desloca para fora, o diafragma conectado no lado oposto está puxando o diafragma para dentro.

Quando percorrer um curso completo, ele entrará em contato com a válvula piloto, pressionando-a e quebrando a vedação para abrir uma porta de escape.

GENERAL PUMP INFORMATION

3.4 Gallons/Minute Max.
1/4" NPT Fluid Port
Intake & Discharge Connection 1/4" Female NPT
Air Inlet 1/4" Female NPT (includes ball valve)
Air Exhaust 3/8" Female NPT (includes silencer)
Air Supply Pressure (All Models) 20 to 100 PSI (1.4 to 7 kgf/cm2)
Discharge Volume Per Cycle 0.0085 gallons (35 cc)
Maximum Cycles Per Minute All diaphragms: 400
Maximum Dry Suction Lift 5-feet
Air Motor Standard: Ryton® Air Motor
Muffler Internal



Maximum Liquid Temperature Fitted with PTFE diaphragm
Groundable Acetal 180F (82C)
Polypropylene (PPG) 180F (82C)
Kynar® (PVDF) 212F (100C)
Aluminum (ADC-12) 212F (100C)
Stainless Steel (316) 212F (100C)

MATERIAL TYPE

:: Aluminum
Dimensions: 6.10" W x 5.87" H
Net Weight: 3.5 lbs. (1.6 kg)
Shipping Weight: 5 lbs.

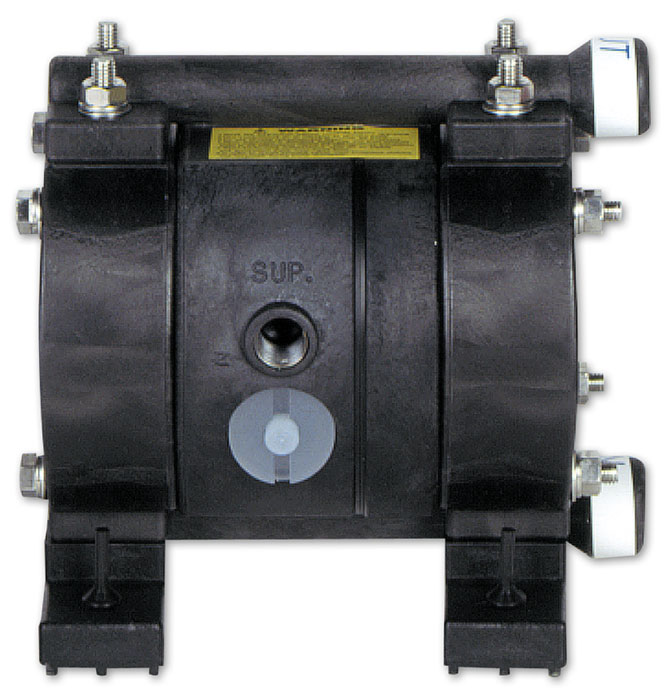

:: Kynar® (PVDF)
Dimensions: 6.06" W x 5.79" H
Net Weight: 3.7 lbs. (1.7 kg)
Shipping Weight: 5.2 lbs.
:: Groundable Acetal
Dimensions: 6.06" W x 5.79" H
Net Weight: 3.1 lbs. (1.4 kg)
Shipping Weight: 4.6 lbs.
:: Stainless Steel
Dimensions: 6.10" W x 5.87" H
Net Weight: 6 lbs. (2.7 kg)
Shipping Weight: 7.5 lbs.
:: Polypropylene
Dimensions: 6.06" W x 5.79" H
Net Weight: 2.9 lbs. (1.3 kg)
Shipping Weight: 4.4 lbs.

ACCESSORIES

Air Motor Kit

K5-AM

Liquid End Kits
Aluminum: K5-MT
Kynar: K5-VT-2
Groundable Acetal: K5-DT
Stainless Steel: K5-MT
Polypropylene: K5-PT
Filter / Regulators

FR-1

FR-1A (Auto Drain)

Dampener

AD-10 Series

Liquid Level Controller

LLC-2Y and LLC-3

Controllers

YSC-3EX and YSC-Batch

Diaphragm Monitor System

DM-2

DRy Run Detector

DRD-100

The Yamada Advantage

Yamada Air Powered Double Diaphragm Pumps: Engineered for High Performance. Manufactured for Long Life.

Rugged, Bolted Construction

All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Bolted construction is superior to clamp band retainers, which frequently require frustrating, unnecessary leakage rebuilds from misalignment during reassembly.

Outside-Accessible Air Valve

Inspection or maintenance of every Yamada air valve may be performed without removing the pump from service. Outside accessible, making it easy to fix / inspect.

Unified Air Valve Concept

Common-size air valve assemblies reduce parts confusion and inventory.

Pilot Valve

Unique to the Yamada design is an individual modular pilot valve that actuates the air valve. It is depressed slightly by the inner center disk creating a pressure drop at one end of the air valve, allowing shifting to occur. It is maintenance free with no cumbersome snap rings or lubricated dynamic o-rings to replace or repair.

Patented Air Valve Technology

Incorporated in every Yamada Air Powered Double Diaphragm pump

Yamada air valve technology is the heart of the air-powered double diaphragm pump and determines reliability. Yamada holds three patents on its field proven valve and enjoys a superior reputation throughout the industry.

Why Specify an AODD Pump?

  • Handles a wide variety of fluids with high solids content
  • Self Priming
  • Ability to Run Dry
  • Variable flow rate and discharge pressure
  • Portable
  • Simple Installation
  • Dead Head
  • Shear Sensitive
  • Safe Operation
  • Submersible
  • Pumping efficiency remains constant
  • Cannot Overheat
  • High Pressure capabilities
  • No mechanical seals, couplings or motors
  • No pressure relief or bypass needed
