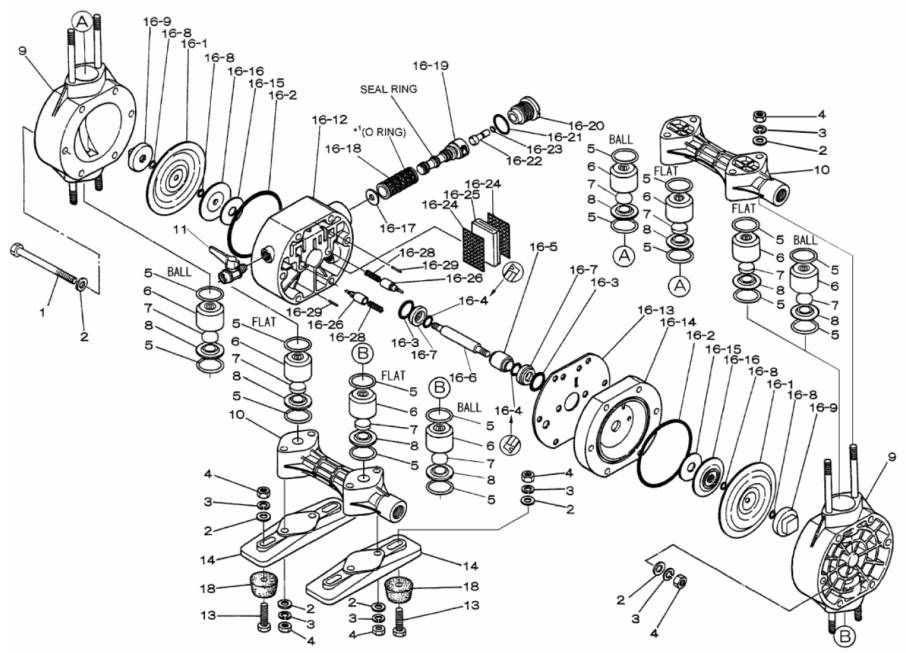

Product NDP-15FPS
| Product Number | Image | Description | Reference Number | Quantity | Action |
|---|---|---|---|---|---|
| 684310 |  |
Bolt | 1 | 6 | Add to Cart |
| 631329 |  |
Plain Washer | 2 | 24 | Add to Cart |
| 681300 |  |
Spring Lock Washer | 3 | 18 | Add to Cart |
| 628012 |  |
Nut | 4 | 18 | Add to Cart |
| 684115 |  |
O-ring | 5 | 8 | Add to Cart |
| 771341 |  |
Valve Stopper | 6 | 4 | Add to Cart |
| 771340 |  |
Flat Valve | 7 | 4 | Add to Cart |
| 771345 |  |
Valve Seat | 8 | 4 | Add to Cart |
| 780119 |  |
Out Chamber | 9 | 2 | Add to Cart |
| 780027 |  |
Manifold | 10 | 2 | Add to Cart |
| 683055 |  |
Ball Valve | 11 | 1 | Add to Cart |
| 621153 |  |
Bolt | 13 | 4 | Add to Cart |
| 771352 |  |
Base | 14 | 2 | Add to Cart |
| 771972 |  |
Diaphragm | 16 | 2 | Add to Cart |
| 640144 |  |
O-ring | 16 | 2 | Add to Cart |
| 640020 |  |
O-ring | 16 | 2 | Add to Cart |
| 684284 |  |
Packing | 16 | 2 | Add to Cart |
| 771337 |  |
Guide | 16 | 1 | Add to Cart |
| 710578 |  |
Center Rod | 16 | 1 | Add to Cart |
| 771336 |  |
Bushing | 16 | 2 | Add to Cart |
| 770968 |  |
Center Disk | 16 | 2 | Add to Cart |
| 780029 |  |
Body A | 16 | 1 | Add to Cart |
| 771347 |  |
Gasket | 16 | 1 | Add to Cart |
| 780030 |  |
Body B | 16 | 1 | Add to Cart |
| 771342 |  |
Cushion | 16 | 2 | Add to Cart |
| 771344 |  |
Center Disk | 16 | 2 | Add to Cart |
| 771483 |  |
Cushion | 16 | 1 | Add to Cart |
| 804249 |  |
Sleeve Assembly | 16 | 1 | Add to Cart |
| 683123 |  |
O-ring (Sleeve O.D.) | 16 | 6 | Add to Cart |
| 802835 |  |
C Spool Valve Assy. | 16 | 1 | Add to Cart |
| 771484 |  |
Seal Ring | 16 | 5 | Add to Cart |
| 771695 |  |
Cap | 16 | 1 | Add to Cart |
| 640022 |  |
O-ring | 16 | 1 | Add to Cart |
| 771350 |  |
Reset Button | 16 | 1 | Add to Cart |
| 640002 |  |
O-ring | 16 | 1 | Add to Cart |
| 771589 |  |
Mesh | 16 | 2 | Add to Cart |
| 771465 |  |
Silencer | 16 | 1 | Add to Cart |
| 832141 |  |
Valve Guide Assy. | 16 | 2 | Add to Cart |
| 710577 |  |
Spring | 16 | 2 | Add to Cart |
| 632752 |  |
Spring Pin | 16 | 2 | Add to Cart |
| 770551 |  |
Cushion | 18 | 4 | Add to Cart |
