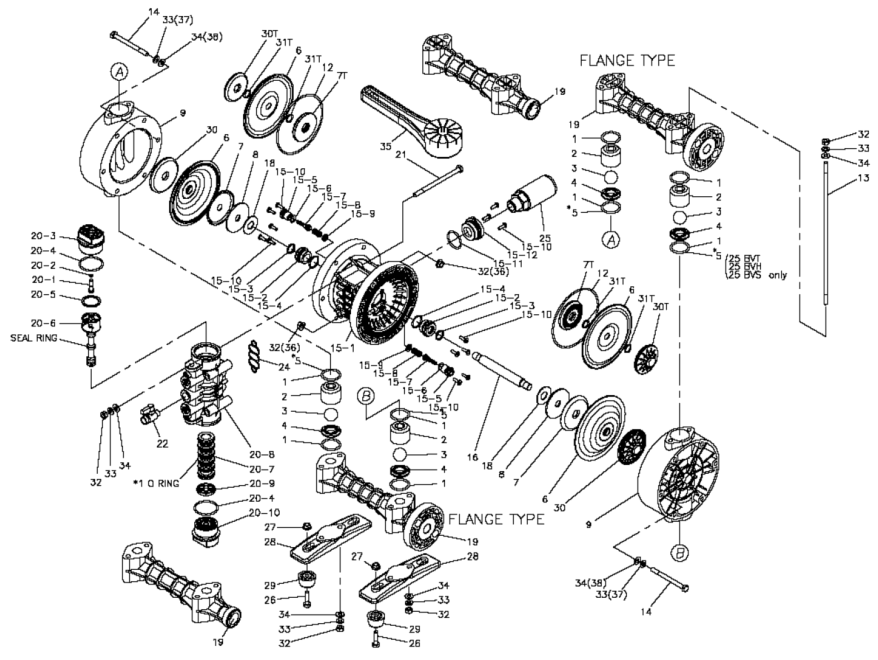

Product NDP-20BPV-PP
| Product Number | Image | Description | Reference Number | Quantity | Action |
|---|---|---|---|---|---|
| 642033 |  |
O-ring | 1 | 8 | Add to Cart |
| 771216 |  |
Valve Stopper | 2 | 4 | Add to Cart |
| 770726 |  |
Ball | 3 | 4 | Add to Cart |
| 780137 |  |
Valve Seat | 4 | 4 | Add to Cart |
| 772960 |  |
Diaphragm | 6 | 2 | Add to Cart |
| 716225 |  |
Center Disk | 7 | 2 | Add to Cart |
| 716226 |  |
Plain Washer | 8 | 2 | Add to Cart |
| 780134 |  |
Out Chamber | 9 | 2 | Add to Cart |
| 640151 |  |
O-ring | 12 | 2 | Add to Cart |
| 710122 |  |
Tie Rod | 13 | 4 | Add to Cart |
| 621166 |  |
Bolt | 14 | 12 | Add to Cart |
| 804603 |  |
Body Assembly | 15 | 1 | Add to Cart |
| 772928 |  |
Body | 15 | 1 | Add to Cart |
| 772931 |  |
Throat Bearing | 15 | 2 | Add to Cart |
| 685414 |  |
Packing | 15 | 2 | Add to Cart |
| 685276 |  |
O-ring | 15 | 2 | Add to Cart |
| 772932 |  |
Valve Seat | 15 | 2 | Add to Cart |
| 640009 |  |
O-ring | 15 | 2 | Add to Cart |
| 802360 |  |
Pilot Valve Assy. | 15 | 2 | Add to Cart |
| 708666 |  |
Spring | 15 | 2 | Add to Cart |
| 772948 |  |
Spring Seat | 15 | 2 | Add to Cart |
| 686030 |  |
Tapping Screw | 15 | 13 | Add to Cart |
| 640132 |  |
O-ring | 15 | 1 | Add to Cart |
| 772933 |  |
Bushing | 15 | 1 | Add to Cart |
| 710252 |  |
Center Rod | 16 | 1 | Add to Cart |
| 771054 |  |
Cushion | 18 | 2 | Add to Cart |
| 780010 |  |
Manifold - NPT | 19 | 2 | Add to Cart |
| 804608 |  |
Valve Body Assembly | 20 | 1 | Add to Cart |
| 772991 |  |
Rest Button | 20 | 1 | Add to Cart |
| 640002 |  |
O-ring | 20 | 1 | Add to Cart |
| 772946 |  |
Cap A | 20 | 1 | Add to Cart |
| 640043 |  |
O-ring | 20 | 2 | Add to Cart |
| 771241 |  |
Packing | 20 | 1 | Add to Cart |
| 802400 |  |
C Spool Valve Assy. | 20 | 1 | Add to Cart |
| 771053 |  |
Seal Ring | 20 | 5 | Add to Cart |
| 804609 |  |
Sleeve Assembly | 20 | 1 | Add to Cart |
| 686029 |  |
O-ring | 20 | 6 | Add to Cart |
| 832903 |  |
Valve Body Assembly | 20 | 1 | Add to Cart |
| 771914 |  |
Cushion | 20 | 1 | Add to Cart |
| 772947 |  |
Cap B | 20 | 1 | Add to Cart |
| 686031 |  |
Bolt | 21 | 4 | Add to Cart |
| 686018 |  |
Ball Valve | 22 | 1 | Add to Cart |
| 772848 |  |
Gasket | 24 | 1 | Add to Cart |
| 804697 |  |
Silencer | 25 | 1 | Add to Cart |
| 621151 |  |
Bolt | 26 | 4 | Add to Cart |
| 686032 |  |
Nut with Flange | 27 | 16 | Add to Cart |
| 771219 |  |
Pump Base | 28 | 2 | Add to Cart |
| 770551 |  |
Cushion | 29 | 4 | Add to Cart |
| 780123 |  |
Center Disk | 30 | 2 | Add to Cart |
| 683635 |  |
Nut | 32 | 12 | Add to Cart |
| 681300 |  |
Spring Lock Washer | 33 | 24 | Add to Cart |
| 631329 |  |
Plain Washer | 34 | 24 | Add to Cart |
| 771244 |  |
Accessory Tool | 35 | 2 | Add to Cart |
