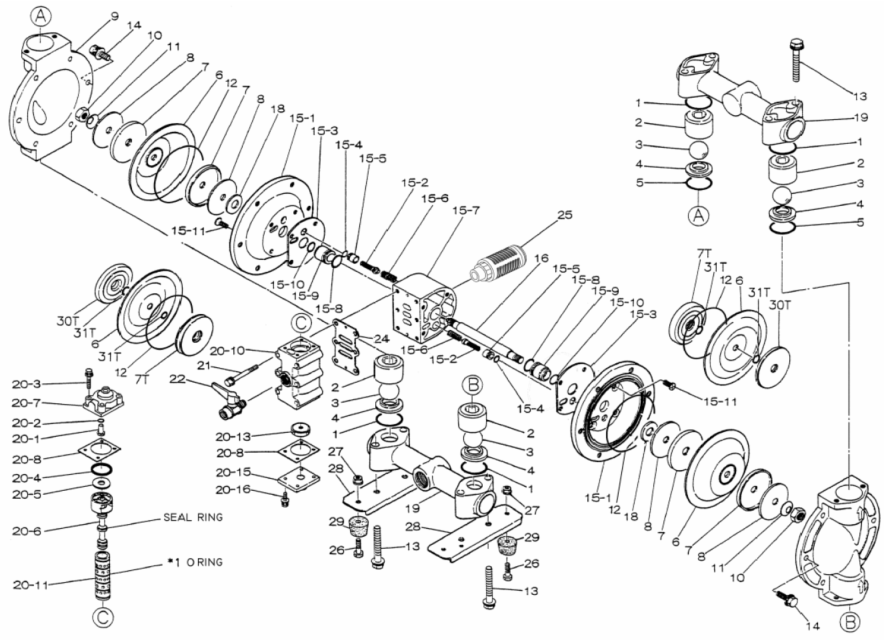

Product NDP-20BSH

NDP-20BSH
Product Number Image Description Reference Number Quantity Action
640036 640036 O-ring 1 4
Add to Cart
711701 711701 Valve Stopper 2 4
Add to Cart
773126 773126 Ball 3 4
Add to Cart
711705 711705 Valve Seat 4 4
Add to Cart
640132 640132 O-ring 5 2
Add to Cart
771362 771362 Diaphragm 6 2
Add to Cart
716225 716225 Center Disk 7 4
Add to Cart
716226 716226 Plain Washer 8 4
Add to Cart
711693 711693 Out Chamber 9 2
Add to Cart
682263 682263 Nut 10 2
Add to Cart
682730 682730 Coned Disk Spring 11 2
Add to Cart
640151 640151 O-ring 12 2
Add to Cart
621159 621159 Bolt 13 8
Add to Cart
631936 631936 Wave Washer 13 8
Add to Cart
621151 621151 Bolt 14 12
Add to Cart
631936 631936 Wave Washer 14 12
Add to Cart
803247 803247 Body Assembly 15 1
Add to Cart
715937 715937 Air Chamber 15 2
Add to Cart
802360 802360 Pilot Valve Assy. 15 2
Add to Cart
771057 771057 Gasket 15 2
Add to Cart
640009 640009 O-ring 15 2
Add to Cart
771945 771945 Valve Seat 15 2
Add to Cart
708666 708666 Spring 15 2
Add to Cart
709812 709812 Body 15 1
Add to Cart
685276 685276 O-ring 15 2
Add to Cart
772703 772703 Throat Bearing 15 2
Add to Cart
685414 685414 Packing 15 2
Add to Cart
682486 682486 Flat Head Bolt 15 8
Add to Cart
709163 709163 Center Rod 16 1
Add to Cart
771054 771054 Cushion 18 2
Add to Cart
831270 831270 Manifold 19 2
Add to Cart
802362 802362 Valve Body Assembly 20 1
Add to Cart
709161 709161 Reset Button 20 1
Add to Cart
640005 640005 O-ring 20 1
Add to Cart
682704 682704 Bolt 20 4
Add to Cart
771241 771241 Packing 20 1
Add to Cart
715961 715961 Plain Washer 20 1
Add to Cart
802400 802400 C Spool Valve Assy. 20 1
Add to Cart
771053 771053 Seal Ring 20 5
Add to Cart
710221 710221 Cap 20 1
Add to Cart
771240 771240 Gasket 20 2
Add to Cart
711639 711639 Valve Body 20 1
Add to Cart
803931 803931 Sleeve Assembly 20 1
Add to Cart
771080 771080 O-ring 20 6
Add to Cart
771914 771914 Cushion 20 1
Add to Cart
709305 709305 Cap 20 1
Add to Cart
682262 682262 Bolt 20 4
Add to Cart
682265 682265 Bolt 4 68226221 Bolt 21 6
Add to Cart
686019 686019 Ball Valve 22 1
Add to Cart
771056 771056 Gasket 24 1
Add to Cart
804697 804697 Silencer 25 1
Add to Cart
611148 611148 Bolt 26 4
Add to Cart
682276 682276 Nut with Flange 27 4
Add to Cart
709157 709157 Pump Base 28 2
Add to Cart
770551 770551 Cushion 29 4
Add to Cart
