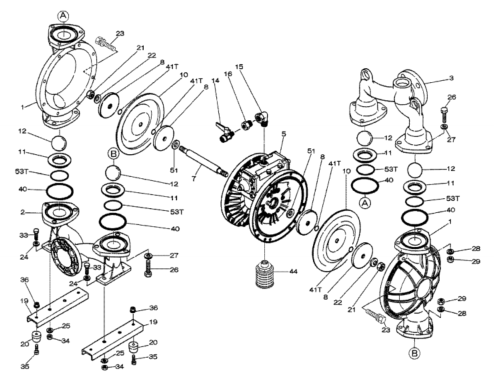

Product NDP-50BAT
| Product Number | Image | Description | Reference Number | Quantity | Action |
|---|---|---|---|---|---|
| 580961 |  |
Out Chamber | 1 | 2 | Add to Cart |
| 714369 |  |
In Manifold | 2 | 1 | Add to Cart |
| 714363 |  |
Out Manifold | 3 | 1 | Add to Cart |
| 803112 |  |
Body Assembly | 5 | 1 | Add to Cart |
| 711939 |  |
Center Rod | 7 | 1 | Add to Cart |
| 707822 |  |
Center Disk | 8 | 4 | Add to Cart |
| 770815 |  |
Diaphragm | 10 | 2 | Add to Cart |
| 712383 |  |
Valve Seat | 11 | 4 | Add to Cart |
| 770693 |  |
Ball | 12 | 4 | Add to Cart |
| 684322 |  |
Ball Valve | 14 | 1 | Add to Cart |
| 682523 |  |
Elbow | 15 | 1 | Add to Cart |
| 711928 |  |
Pump Base | 19 | 2 | Add to Cart |
| 771402 |  |
Cushion | 20 | 4 | Add to Cart |
| 706128 |  |
Nut | 21 | 2 | Add to Cart |
| 682740 |  |
Coned Disk Spring | 22 | 2 | Add to Cart |
| 686045 |  |
Bolt | 23 | 16 | Add to Cart |
| 631014 |  |
Plain Washer | 24 | 4 | Add to Cart |
| 631917 |  |
Wave Washer | 25 | 4 | Add to Cart |
| 611203 |  |
Bolt | 26 | 12 | Add to Cart |
| 631015 |  |
Plain Washer | 27 | 12 | Add to Cart |
| 631918 |  |
Spring Lock Washer | 28 | 12 | Add to Cart |
| 627014 |  |
Nut | 29 | 12 | Add to Cart |
| 611177 |  |
Bolt | 33 | 4 | Add to Cart |
| 627013 |  |
Nut | 34 | 4 | Add to Cart |
| 611149 |  |
Bolt | 35 | 4 | Add to Cart |
| 682276 |  |
Nut with Flange | 36 | 4 | Add to Cart |
| 643069 |  |
O-ring | 40 | 4 | Add to Cart |
| 643015 |  |
O-ring | 41 | 4 | Add to Cart |
| 804764 |  |
Muffler | 44 | 1 | Add to Cart |
| 770582 |  |
Cushion | 51 | 2 | Add to Cart |
| 643139 |  |
O-ring | 53 | 4 | Add to Cart |
| 711934 |  |
Air Chamber | 43586 | 2 | Add to Cart |
| 711936 |  |
Body | 43587 | 1 | Add to Cart |
| 772689 |  |
Throat Bearing | 43588 | 2 | Add to Cart |
| 711937 |  |
Spring | 43589 | 2 | Add to Cart |
| 771740 |  |
Valve Seat | 43590 | 2 | Add to Cart |
| 832162 |  |
Pilot Valve Assembly | 43591 | 2 | Add to Cart |
| 640020 |  |
O-ring | 43593 | 2 | Add to Cart |
| 685444 |  |
Packing | 43594 | 2 | Add to Cart |
| 640029 |  |
O-ring | 43595 | 2 | Add to Cart |
| 771742 |  |
Gasket | 43596 | 2 | Add to Cart |
| 683812 |  |
Flat Head Bolt | 43597 | 12 | Add to Cart |
| 802971 |  |
Valve Body Assembly | 43598 | 1 | Add to Cart |
| 771712 |  |
Gasket | 43599 | 1 | Add to Cart |
| 684240 |  |
Bolt | 43600 | 6 | Add to Cart |
| 684987 |  |
Plain Washer | 43603 | 12 | Add to Cart |
| 711931 |  |
Valve Body | 5 | 1 | Add to Cart |
| 580999 |  |
Cap A | 5 | 1 | Add to Cart |
| 581000 |  |
Cap B | 5 | 1 | Add to Cart |
| 771735 |  |
Spring Stopper | 5 | 1 | Add to Cart |
| 712976 |  |
Reset Button | 5 | 1 | Add to Cart |
| 771738 |  |
Gasket | 5 | 2 | Add to Cart |
| 685036 |  |
Bolt | 5 | 8 | Add to Cart |
| 805084 |  |
C-Spool Assy (CF) | 41042 | 1 | Add to Cart |
| 803675 |  |
Sleeve Assembly | 5 | 1 | Add to Cart |
| 640005 |  |
O-ring | 41407 | 1 | Add to Cart |
| 684128 |  |
Cushion | 41772 | 4 | Add to Cart |
| 803675 | |
Sleeve Assembly | 0 | 1 | Add to Cart |
| 640036 |  |
O-ring | 0 | 6 | Add to Cart |
| 805085 |  |
Spool Assy (CF) | 0 | 1 | Add to Cart |
| 771735 | |
Spring Stopper | 0 | 1 | Add to Cart |
| 711932 |  |
C-Spring | 0 | 2 | Add to Cart |
| 771734 |  |
Block | 0 | 1 | Add to Cart |
