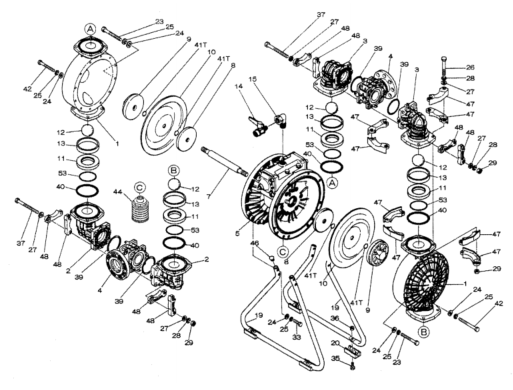

Product NDP-80BPE
| Product Number | Image | Description | Reference Number | Quantity | Action |
|---|---|---|---|---|---|
| 780149 |  |
Out Chamber | 1 | 2 | Add to Cart |
| 780246 |  |
In Manifold | 2 | 2 | Add to Cart |
| 780152 |  |
Out Manifold | 3 | 2 | Add to Cart |
| 780250 |  |
Center Manifold | 4 | 2 | Add to Cart |
| 803113 |  |
Body Assembly | 5 | 1 | Add to Cart |
| 711901 |  |
Center Rod | 7 | 1 | Add to Cart |
| 711906 |  |
Center Disk | 8 | 2 | Add to Cart |
| 780064 |  |
Center Disk | 9 | 2 | Add to Cart |
| 771858 |  |
Diaphragm | 10 | 2 | Add to Cart |
| 772098 |  |
Valve Seat | 11 | 4 | Add to Cart |
| 770596 |  |
Ball | 12 | 4 | Add to Cart |
| 772099 |  |
Valve Guide | 13 | 4 | Add to Cart |
| 684322 |  |
Ball Valve | 14 | 1 | Add to Cart |
| 682523 |  |
Elbow | 15 | 1 | Add to Cart |
| 711927 |  |
Stand Body | 19 | 2 | Add to Cart |
| 771865 |  |
Cushion | 20 | 4 | Add to Cart |
| 683543 |  |
Bolt | 23 | 20 | Add to Cart |
| 631330 |  |
Plain Washer | 24 | 32 | Add to Cart |
| 680257 |  |
Spring Lock Washer | 25 | 32 | Add to Cart |
| 621213 |  |
Bolt | 26 | 16 | Add to Cart |
| 631331 |  |
Plain Washer | 27 | 32 | Add to Cart |
| 680607 |  |
Spring Lock Washer | 28 | 24 | Add to Cart |
| 628014 |  |
Nut | 29 | 24 | Add to Cart |
| 621179 |  |
Bolt | 33 | 8 | Add to Cart |
| 621149 |  |
Bolt | 35 | 4 | Add to Cart |
| 683837 |  |
Nut with Flange | 36 | 4 | Add to Cart |
| 683544 |  |
Bolt | 37 | 8 | Add to Cart |
| 684123 |  |
O-ring | 39 | 4 | Add to Cart |
| 684125 |  |
O-ring | 40 | 4 | Add to Cart |
| 683552 |  |
Bolt | 42 | 4 | Add to Cart |
| 804764 |  |
Muffler | 44 | 1 | Add to Cart |
| 683641 |  |
Cap | 46 | 4 | Add to Cart |
| 771789 |  |
Protector A | 47 | 32 | Add to Cart |
| 771790 |  |
Protector B | 48 | 24 | Add to Cart |
| 685443 |  |
O-ring | 53 | 4 | Add to Cart |
| 711935 |  |
Air Chamber | 5 | 2 | Add to Cart |
| 711936 |  |
Body | 5 | 1 | Add to Cart |
| 772689 |  |
Throat Bearing | 5 | 2 | Add to Cart |
| 711937 |  |
Spring | 5 | 2 | Add to Cart |
| 771740 |  |
Valve Seat | 5 | 2 | Add to Cart |
| 832163 |  |
Pilot Valve Assy | 5 | 2 | Add to Cart |
| 640020 |  |
O-ring | 5 | 2 | Add to Cart |
| 685444 |  |
Packing | 5 | 2 | Add to Cart |
| 640029 |  |
O-ring | 5 | 2 | Add to Cart |
| 771742 |  |
Gasket | 5 | 2 | Add to Cart |
| 683812 |  |
Flat Head Bolt | 5 | 12 | Add to Cart |
| 802971 |  |
Valve Body Assembly | 5 | 1 | Add to Cart |
| 771712 |  |
Gasket | 5 | 1 | Add to Cart |
| 684240 |  |
Bolt | 5 | 6 | Add to Cart |
| 684987 |  |
Plain Washer | 5 | 12 | Add to Cart |
| 711931 |  |
Valve Body | 5 | 1 | Add to Cart |
| 580999 |  |
Cap A | 5 | 1 | Add to Cart |
| 581000 |  |
Cap B | 5 | 1 | Add to Cart |
| 771735 |  |
Spring Stopper | 5 | 1 | Add to Cart |
| 712976 |  |
Reset Button | 5 | 1 | Add to Cart |
| 771738 |  |
Gasket | 5 | 2 | Add to Cart |
| 685036 |  |
Bolt | 5 | 8 | Add to Cart |
| 805084 |  |
C-Spool Assy (CF) | 5 | 1 | Add to Cart |
| 803675 |  |
Sleeve Assembly | 5 | 1 | Add to Cart |
| 640005 |  |
O-ring | 5 | 1 | Add to Cart |
| 684128 |  |
Cushion | 5 | 4 | Add to Cart |
| 803675 | |
Sleeve Assembly | 0 | 1 | Add to Cart |
| 640036 |  |
O-ring | 0 | 6 | Add to Cart |
| 805085 |  |
Spool Assy (CF) | 0 | 1 | Add to Cart |
| 771735 | |
Spring Stopper | 0 | 1 | Add to Cart |
| 711932 |  |
C-Spring | 0 | 2 | Add to Cart |
| 771734 |  |
Block | 0 | 1 | Add to Cart |
