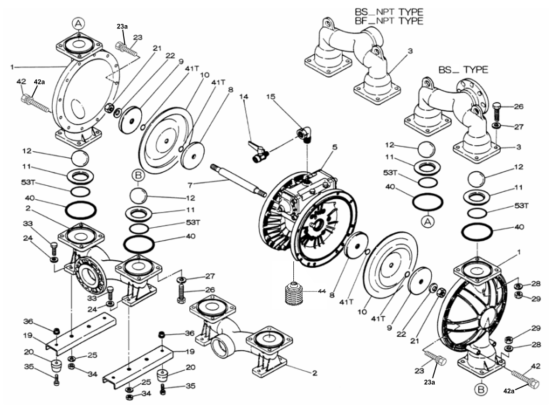

Product NDP-80BSC
| Product Number | Image | Description | Reference Number | Quantity | Action |
|---|---|---|---|---|---|
| 712933 |  |
Out Chamber | 1 | 2 | Add to Cart |
| 712603 |  |
In Manifold - Flange | 2 | 1 | Add to Cart |
| 712602 |  |
Out Manifold - Flange | 3 | 1 | Add to Cart |
| 803113 |  |
Body Assembly | 5 | 1 | Add to Cart |
| 711901 |  |
Center Rod | 7 | 1 | Add to Cart |
| 711906 |  |
Center Disk | 8 | 2 | Add to Cart |
| 711907 |  |
Center Disk | 9 | 2 | Add to Cart |
| 771857 |  |
Diaphragm | 10 | 2 | Add to Cart |
| 771958 |  |
Valve Seat | 11 | 4 | Add to Cart |
| 770559 |  |
Ball | 12 | 4 | Add to Cart |
| 684322 |  |
Ball Valve | 14 | 1 | Add to Cart |
| 682523 |  |
Elbow | 15 | 1 | Add to Cart |
| 711912 |  |
Pump Base | 19 | 2 | Add to Cart |
| 771402 |  |
Cushion | 20 | 4 | Add to Cart |
| 683408 |  |
Nut | 21 | 2 | Add to Cart |
| 682740 |  |
Coned Disk Spring | 22 | 2 | Add to Cart |
| 621182 |  |
Bolt | 23 | 20 | Add to Cart |
| 631937 |  |
Wave Washer | 23 | 20 | Add to Cart |
| 631174 |  |
Plain Washer | 24 | 4 | Add to Cart |
| 631937 | |
Wave Washer | 25 | 4 | Add to Cart |
| 621203 |  |
Bolt | 26 | 16 | Add to Cart |
| 631175 |  |
Plain Washer | 27 | 16 | Add to Cart |
| 631938 |  |
Spring Lock Washer | 28 | 16 | Add to Cart |
| 628014 |  |
Nut | 29 | 16 | Add to Cart |
| 621177 |  |
Bolt | 33 | 4 | Add to Cart |
| 628013 |  |
Nut | 34 | 4 | Add to Cart |
| 611149 |  |
Bolt | 35 | 4 | Add to Cart |
| 682276 |  |
Nut with Flange | 36 | 4 | Add to Cart |
| 640078 |  |
O-ring | 40 | 4 | Add to Cart |
| 683543 |  |
Bolt | 42 | 4 | Add to Cart |
| 631937 | |
Wave Washer | 42 | 4 | Add to Cart |
| 804764 |  |
Muffler | 44 | 1 | Add to Cart |
| 711935 |  |
Air Chamber | 5 | 2 | Add to Cart |
| 711936 |  |
Body | 5 | 1 | Add to Cart |
| 772689 |  |
Throat Bearing | 5 | 2 | Add to Cart |
| 711937 |  |
Spring | 5 | 2 | Add to Cart |
| 771740 |  |
Valve Seat | 5 | 2 | Add to Cart |
| 832163 |  |
Pilot Valve Assy | 5 | 2 | Add to Cart |
| 640020 |  |
O-ring | 5 | 2 | Add to Cart |
| 685444 |  |
Packing | 5 | 2 | Add to Cart |
| 640029 |  |
O-ring | 5 | 2 | Add to Cart |
| 771742 |  |
Gasket | 5 | 2 | Add to Cart |
| 683812 |  |
Flat Head Bolt | 5 | 12 | Add to Cart |
| 802971 |  |
Valve Body Assembly | 5 | 1 | Add to Cart |
| 771712 |  |
Gasket | 5 | 1 | Add to Cart |
| 684240 |  |
Bolt | 5 | 6 | Add to Cart |
| 684987 |  |
Plain Washer | 5 | 12 | Add to Cart |
| 711931 |  |
Valve Body | 5 | 1 | Add to Cart |
| 580999 |  |
Cap A | 5 | 1 | Add to Cart |
| 581000 |  |
Cap B | 5 | 1 | Add to Cart |
| 771735 |  |
Spring Stopper | 5 | 1 | Add to Cart |
| 712976 |  |
Reset Button | 5 | 1 | Add to Cart |
| 771738 |  |
Gasket | 5 | 2 | Add to Cart |
| 685036 |  |
Bolt | 5 | 8 | Add to Cart |
| 805084 |  |
C-Spool Assy (CF) | 5 | 1 | Add to Cart |
| 803675 |  |
Sleeve Assembly | 5 | 1 | Add to Cart |
| 640005 |  |
O-ring | 5 | 1 | Add to Cart |
| 684128 |  |
Cushion | 5 | 4 | Add to Cart |
| 803675 | |
Sleeve Assembly | 0 | 1 | Add to Cart |
| 640036 |  |
O-ring | 0 | 6 | Add to Cart |
| 805085 |  |
Spool Assy (CF) | 0 | 1 | Add to Cart |
| 771735 | |
Spring Stopper | 0 | 1 | Add to Cart |
| 711932 |  |
C-Spring | 0 | 2 | Add to Cart |
| 771734 |  |
Block | 0 | 1 | Add to Cart |
