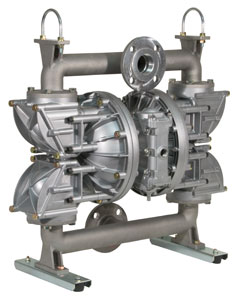

SolidPRO Bomba de diafragma de sólidos

Yamada® SolidPRO® Bomba de Diafragma para Manuseio de Sólidos

Fabricantes Yamada® As bombas SolidPRO® são projetadas para bombear fluidos contendo sólidos de até 2 polegadas (50mm) de diâmetro. Construídas com base na linha de bombas da Série NDP, as bombas SolidPRO® incorporam a válvula de ar isenta de lubrificante / livre de lubrificante patenteada da Yamada e a construção aparafusada robusta e de fácil manutenção.

Projetado para durabilidade em campo, as bombas SolidPRO são fabricadas com tecnologia inovadora de válvula de retenção tipo flap que fornece passagem contínua de sólidos, minimizando o entupimento e o tempo de inatividade. Quatro parafusos externos liberam as tampas das válvulas em ambos os lados, permitindo o serviço e a manutenção sem remover a bomba da instalação.



Design Features

  • Heavy-duty flap check valve permits passage of solids up to 2 inches
  • Easy access to valve chambers for ease of maintenance
  • Vented diaphragm chambers alleviate problems associated with trapped air/gas
  • In-line maintenance facilitates servicing pump without removal from installation
  • Top-suction / bottom-discharge design keeps solids from settling in pump
  • Non-lubricated air valve
  • Bolted construction
  • Short-stroke technology improves diaphragm life
  • Outside-accessible air valve
  • Modular pilot valve design requires no dynamic O-rings to replace or repair



GENERAL PUMP INFORMATION

Model Number: NDP-50FAN*
Nominal Diameter: 2 inch (50 mm)
Maximum Discharge Volume: 158.5 Gallons/min.
Fluid Connections Suction: NPT 2 or ANSI flange
150# 2" equivalent
Discharge: NPT 2 or ANSI flange
150# 2" equivalent
Air Connection Supply: NPT 3/4"
Exhaust: NPT 1"
Normal Air Supply Pressure: 30 -100 PSI (0.2 -0.7 MPa)
Maximum Discharge Pressure: 100 PSI (0.7 MPa)
Discharge Volume per Cycle: 0.79 GPM (3.0 L/min)
Slurry Limitation: Maximum 2" solids
Maximum Operating Noise: 94dB
Weight: 115 lbs (52 kg)
*Additional Materials Available

MATERIAL TYPE

:: Aluminum
Dimensions: 27.91" W x 32.59" H
Net Weight: 115 lbs. (52 kg)
Shipping Weight: 130 lbs.
